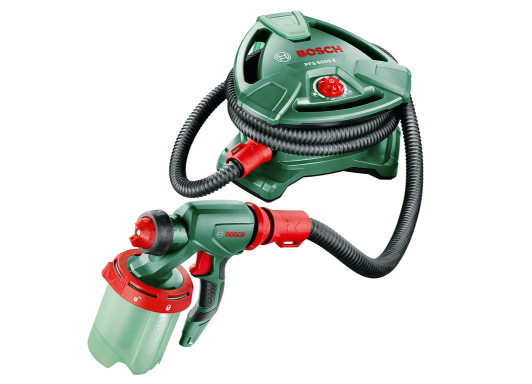

Bosch PFS 5000 E

For large projects

The PFS 5000 E sprays all paints undiluted with its 1200 watt motor. This powerful tool can be used, for example in a renovation project, to paint entire apartments or houses including the exterior ? from different walls, to wooden floors, through to garages covered with tongue-and-groove panels. An especially long range is provided by the four meter long, robust air hose which can be simply wound onto the tool after use. The paint spray system is operated conveniently using a foot-operated switch, and the tool offers great freedom of movement thanks to its integrated wheels.

With the PFS 3000-2 and PFS 5000 E paint spray systems, Bosch will in future be offering tools which for the first time give do-it-yourselfers a free choice of whether to spray wall paints, lacquers or glazes. Thanks to their ?AllPaint? technology, they are the first spray systems for do-it-yourselfers that can apply the different types of paint with only one gun. This makes them considerably superior to previous systems. They also make it easier to quickly and consistently apply paint, even on structured surfaces such as brickwork or garden fences, therefore saving time and materials compared to applying paint with a paintbrush and roller ? with easy cleaning and no major loss of paint.

Easy handling

Watery wood glazes, thin-viscosity lacquers or thick-viscosity wall paints ? easy-to-understand symbols on the tool enable do-it-yourselfers to adapt the PFS 5000 E paint spray systems to the relevant type of paint in only a few moves. The right nozzle and the corresponding paint mode are easy to select and set. Thanks to the powerful motors in the tools, most paints do not have to be diluted prior to spraying. Painstaking preparations and setup times are significantly reduced. The paint tank is also designed to make work go quickly. It holds up to one liter of paint and is quick to refill and clean due to its SDS system. The shape of the paint tank has been designed to ensure consistent paint supply to the gun in every work position, be it overhead or close to the floor. When you have finished applying paint for the current project, the system just has to be rinsed briefly, the nozzle changed if necessary, and the paint mode changed ? then you are ready to take on the next project. The fine spray mist of both tools achieves consistent painting results both on large surfaces and in small gaps and corners. There are three spraying options: a horizontal, a vertical or a pencil jet.

Key product features

ALLPaint Technology: easy spraying of all types of paint without dilution

Practical SDS system for fast refilling of paint and easy cleaning

ConstantFeed paint tank for consistent paint supply even when working overhead or close to the floor

Maximum Flex ibility and long range thanks to 4 m air hose and integrated wheels

Continuously variable airflow for controlling the paint application

Foot-operated switch for switching the tool on and off

Storage function for hose and nozzles

Technical key data

Technical data

Power input 1.200 W

Delivery volume 500 ml/min

Paint application 3 m² in 1 min

Container volume 1.000 ml

Machine weight 4,8 kg

Hose length 4 m

Noise / vibration information

Measured values determined according to EN 60745

Total vibration values (vector sum of three directions).

Vibration emission value ah 2.5 m/s²

Uncertainty K 1.5 m/s²

Comes complete with

Nozzle for lacquers (black)

Nozzle for glazes (grey)

Nozzle for wall paint (white)

Cleaning brush

Paint filter

2 x 1000 ml paint tanks with lid (1 600 A00 1GG)
